OB01705

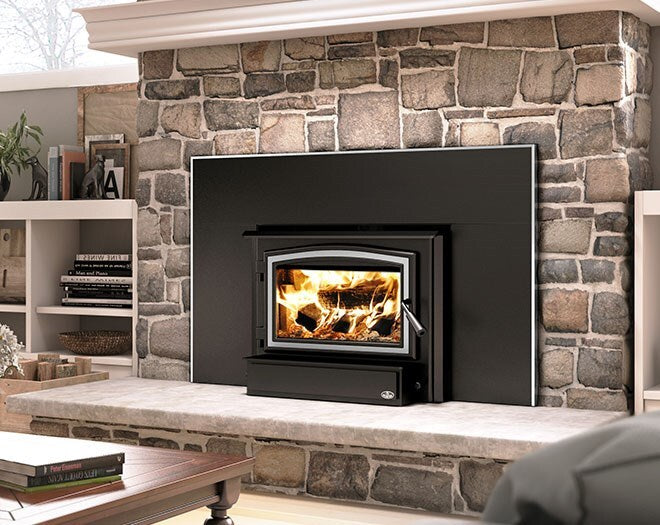

Shown with required door overlay, faceplate kit and faceplate trim (not included). ÊThese items are required to complete this model.
Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 1.26 g/h!
Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.
GENERAL FEATURES
- Combustion technology Non-catalytic
- EPA loading volume (ft_) 1.44
- High-efficiency EPA certified appliance Yes, EPA 2020 approved
- Maximum log length 18"
- Log positioning Over width
- Chimney diameter 6"
- Flue outlet diameter 6"
- Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
- Minimum chimney height (feet) 15'
- Baffle type C-Cast
- Approved for a mobile home installation No
- Shipping Weight 361 lb (164 kg)
- Door type Single, glass with cast iron frame
- Glass type Ceramic glass
- Glass surface à dimensions (Width X Height) 15 3/4" x 9 3/8"
- Glass air-wash system Yes
- Premium quality blower included (CFM) 144
- Overall dimension (Height) 21 1/4"
- Overall dimension (Width) 27 1/8"
- Overall dimension (Depth) 22 3/8"
- Door opening à dimension (Height) 8 3/4"
- Door opening - dimension (Width) 17 1/4''
- Firebox à dimension (Height) 11 7/8"
- Firebox à dimension (Width) 19 5/8"
- Firebox à dimension (Depth) 13 1/2"
- Firebox lined with refractory bricks for better heat distribution Yes
- Stainless-steel secondary-air system improving gas combustion Yes
- Adjustable threaded legs Yes
- Steel thickness à body 3/16"
- Steel thickness à top 5/16"
- Fireplace opening à minimum (Height) 21 1/2"
- Fireplace opening à minimum (Width) 27 1/2"
- Fireplace opening à minimum (Depth) 12 7/8"
- USA standard (emissions) EPA
- Canadian Standard (emissions) CSA B415.1-10
- USA standard (safety) UL 1482, UL 737
- Canadian standard (safety) ULC-S628
- Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
- Warranty Limited lifetime
