OB02028

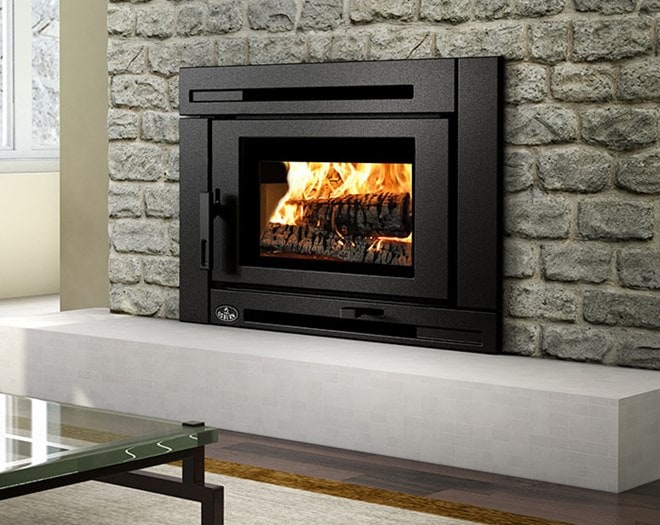

Shown with optional faceplate backing kit (not included).
Dry cordwood
Heating area : 500 - 2,100 Ft2
Maximum heat output : 75,000 BTU/h (22.0 kW)
Certification: EPA 2020
This updated version of the Matrix wood insert will seduce you with an average particle emission rate as low as 1.54 g/h. The latest modifications made to this box are well in tune with the industry standards required for 2020. Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.
GENERAL FEATURES
- Combustion technology Non-catalytic
- High-efficiency EPA certified appliance Yes, EPA 2020 approved
- Maximum log length 20"
- Log positioning Over width
- Chimney diameter 6"
- Flue outlet diameter 6"
- Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
- Minimum chimney height (feet) 12'
- Baffle type C-Cast
- Approved for a mobile home installation No
- Shipping Weight 484 lb (220 kg)
- Door type Single, glass with cast iron frame
- Glass type Ceramic glass
- Glass surface à dimensions (Width X Height) 19 5/8" X 11 7/8"
- Glass air-wash system Yes
- Premium quality blower included (CFM) 90
- Overall dimension (Height) 25 1/8"
- Overall dimension (Width) 36 1/8"
- Overall dimension (Depth) 23 1/8"
- Door opening à dimension (Height) 8 3/4"
- Door opening - dimension (Width) 17 1/2"
- Firebox à dimension (Height) 11 7/8"
- Firebox à dimension (Width) 21"
- Firebox à dimension (Depth) 16 3/4"
- Firebox lined with refractory bricks for better heat distribution Yes
- Stainless-steel secondary-air system improving gas combustion Yes
- Steel thickness à body 3/16"
- Steel thickness à top 5/16"
- Fireplace opening à minimum (Height) 23 5/16"
- Fireplace opening à minimum (Width) 28 7/8"
- Fireplace opening à minimum (Depth) 19 5/8"
- USA standard (emissions) EPA / ASTM WK47329
- Canadian Standard (emissions) CSA B415.1-10
- USA standard (safety) UL 1482, UL 737
- Canadian standard (safety) ULC S628
- Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
- Warranty Limited lifetime
