OB04010

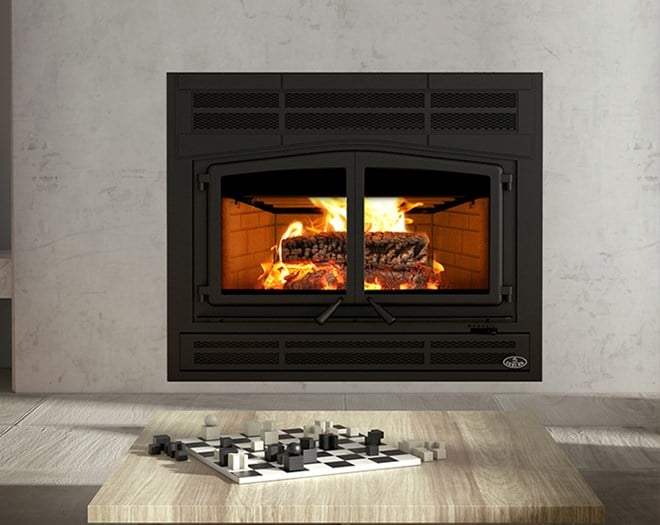

Show with required Faceplate and Refractory Brick Panels (not included).
Fuel type : Dry cordwood
Recommended heating area (sq.ft.) : () 1,000 - 2,800
Maximum heat output : 95,000 BTU/h (27.8 kW)
Certification: EPA 2020
Beyond the Size!
This wood fireplace offers peace of mind due to the combination of energy efficiency and clean heating. A simple solution; its clean design suits any type of decor.
Large fireplace. Behind its large glass door, the 4.28 cubic foot combustion chamber can hold an impressive 60 lbs of wood.
Low emissions. This energy efficient fireplace complies with the EPAÃs clean-air standards (only 1.6 g/hr of emissions).
High efficiency. The Horizon fireplace is capable of heating large spaces and burns for 10 hours.
GENERAL FEATURES
- Combustion technology Non-catalytic
- High-efficiency EPA certified appliance Yes, EPA 2020 approved
- Maximum log length 25"
- Log positioning Over width
- Chimney diameter 8"
- Flue outlet diameter 8"
- Type of chimney CAN/ULC S604, UL 103 (1700 ¡F) - CAN/ULC S629, UL 103 HT (2100 ¡F)
- Minimum chimney height (feet) 15'
- Baffle type C-Cast
- Approved for a mobile home installation No
- Shipping Weight 550 lb (250 kg)
- Door type Double, glass with cast iron frame
- Glass type Ceramic glass
- Glass surface à dimensions (Width X Height) 29 3/4" X 13 1/2"
- Glass air-wash system Yes
- Premium quality blower included (CFM) 176
- Overall dimension (Height) 43 3/8"
- Overall dimension (Width) 50 3/4"
- Overall dimension (Depth) 31 3/4"
- Door opening à dimension (Height) 12 3/4"
- Door opening - dimension (Width) 33"
- Firebox à dimension (Height) 17"
- Firebox à dimension (Width) 25 3/8"
- Firebox à dimension (Depth) 17 7/8"
- Moulded refractory bricks Yes
- Stainless-steel secondary-air system improving gas combustion Yes
- USA standard (emissions) EPA / ASTM WK47329
- Canadian Standard (emissions) CSA B415.1-10
- USA standard (safety) UL 127
- Canadian standard (safety) ULC-S610
- Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
- Warranty Limited lifetime
Manufacturiers* Brand Type Diameter
American Metal HSS AC Triple Wall 8" (20 cm)
American Metal HS AC Triple Wall 8" (20 cm)
DuraVent DuraTech 1" Solid Pack 8" (20 cm)
DuraVent DuraTech Canada DTC 1" Solid Pack 8" (20 cm)
DuraVent Dura Plus HTC 2" Solid Pack 8" (20 cm)
DuraVent DuraTech Premium 2" Solid Pack 8" (20 cm)
DuraVent Dura Plus AC Triple Wall 8" (20 cm)
Metal Fab Temp Guard 1" Solid Pack 8" (20 cm)
Olympia Chimney Champion Chimney System 1" Solid Pack 8" (20 cm)
Olympia Chimney Rockford Chimney Systems 1" Solid Pack 8" (20 cm)
Olympia Chimney/SBI Venting Division Ventis 1" Solid Pack 8" (20 cm)
SBI Venting Division Nexvent 1" Solid Pack 8" (20 cm)
Security Chimney S-2100 + 2" Solid Pack 8" (20 cm)
Selkirk Super Vent 2100 (JM) 2" Solid Pack 8" (20 cm)
Selkirk CF Sentinel (CF) 2" Solid Pack 8" (20 cm)
Selkirk Super Pro 2100 (ALT) 2" Solid Pack 8" (20 cm)
